FUSE BLOCK AGC 6 CIR W/GROUND

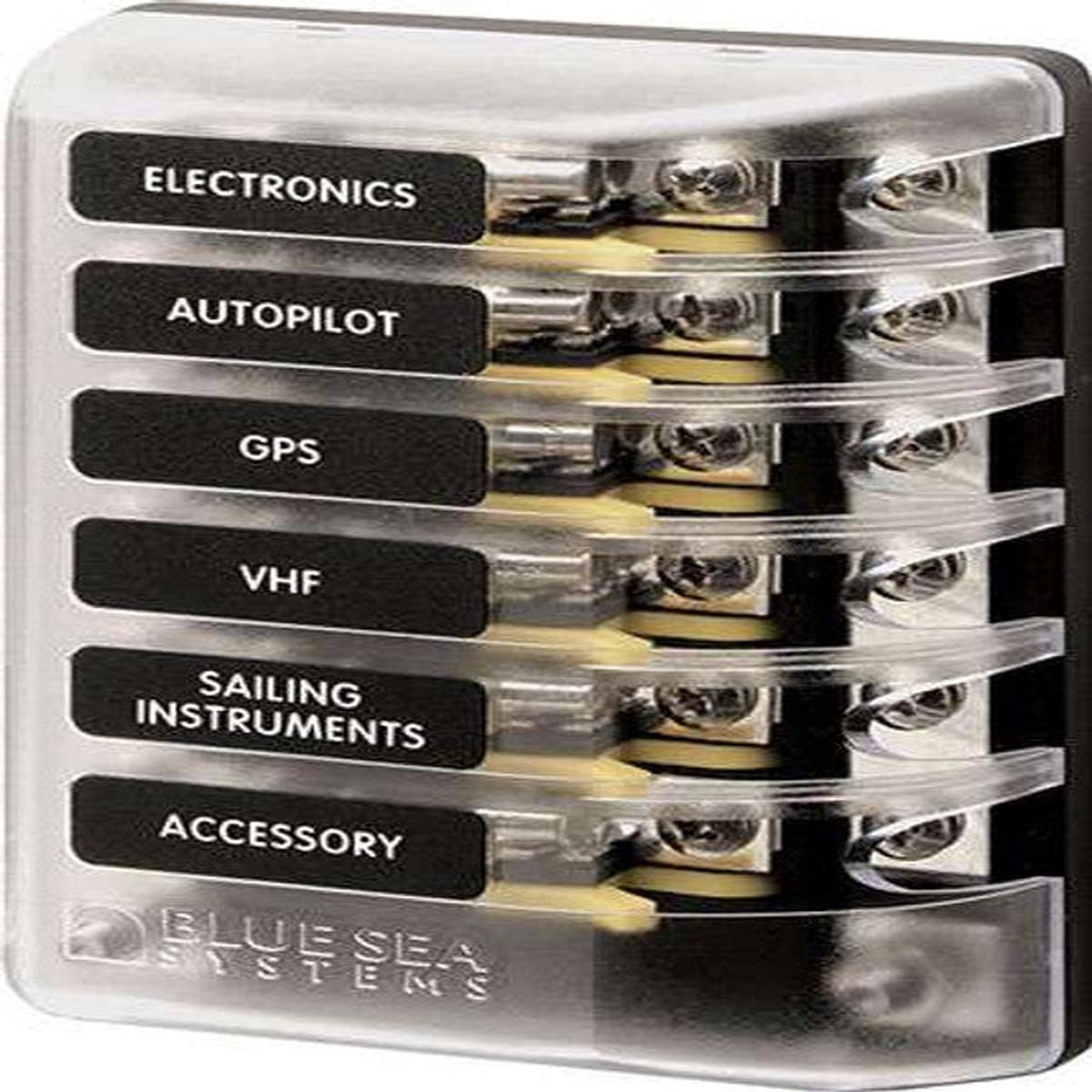

The Blue Sea 5015 ST Glass 6 Circuit Fuse Block is a 3AG Fuse Block System. Clear insulating cover with label recesses for standard Blue Sea Systems? labels. Cover insulates all conductive parts, satisfying ABYC/USCG requirements and storing spare fuses. Tin-plated copper buses and Beryllium copper fuse clips give full 30 Ampere rating per circuit. Uses AGC (fast-acting), MDL (time-delay) and all other 3AG glass fuses.

Specifications

• Material, Cover and Base: Polycarbonate
• AGC/MDL Fuses available: 1/8 to 30 Amperes
• Fuse Dimensions: 1/4″ x 1-1/4″
• Block Dimensions: 3-1/4 x 5 x 1-1/4
• Maximum Amperage per circuit: 30 Amperes
• Maximum Amperage block: 100 Amperes
• Maximum Voltage: 32 Volts DC
