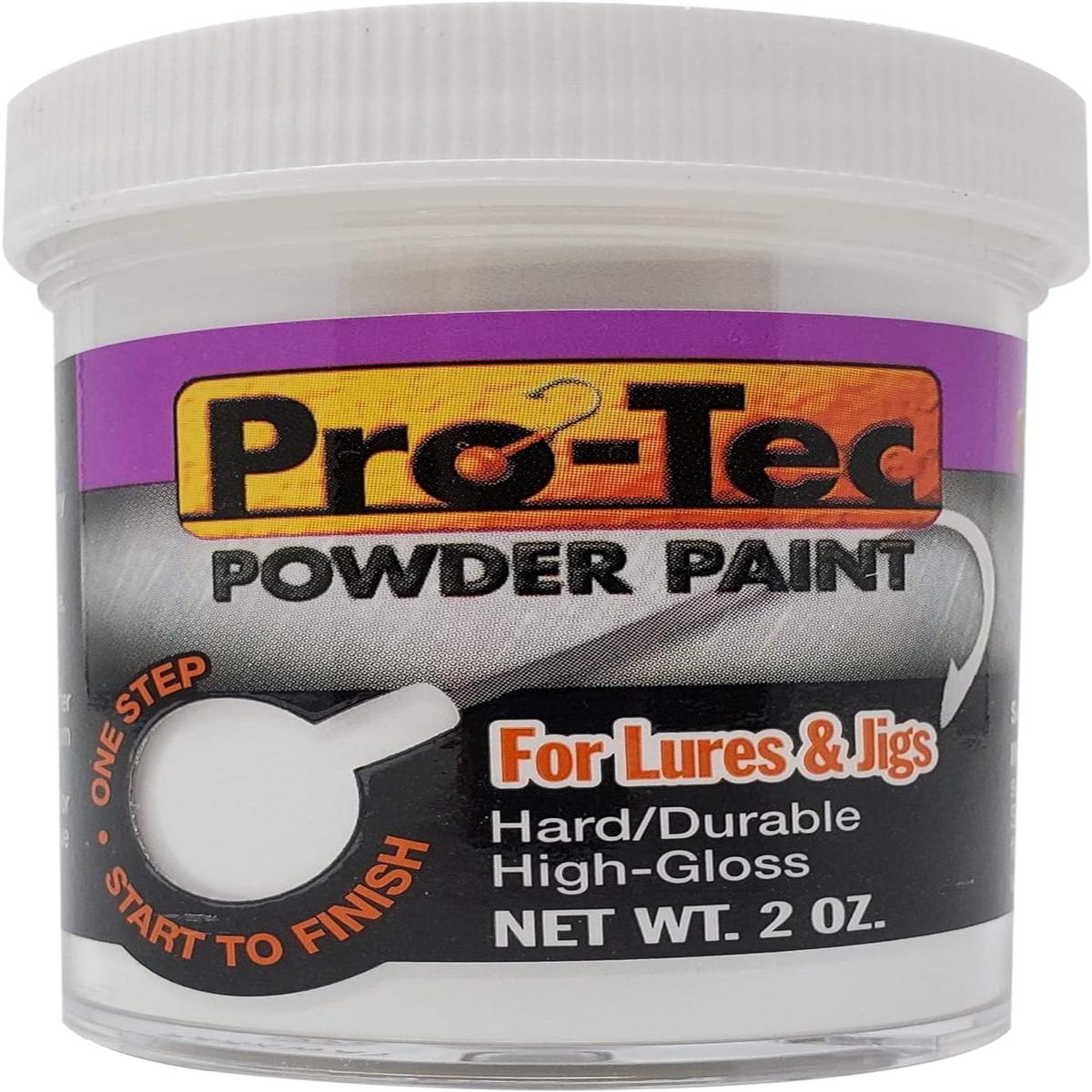

Component Systems Pro-Tec Powder Paint

The CS Coating Pro-Tec Powder Paint is a convenient and cost effective way to create quality, custom colored jigs. This powder paint requires no primer coat and no gloss coat which translates into both time and cost economy. Application of the powder paint is a simple and straight forward process that requires a heat source and a container for the paint. Cleanup is simple too. The high-gloss finish dries in seconds so you spend less time painting and more time fishing. Imagine a paint with virtually no odor, no drying time, no solvents and no mixing. Now imagine a brilliant, super-durable high gloss finish in seconds! These qualities, coupled with a spectrum of colors to choose from, have made Pro-Tec Powder Paint the obvious choice for thousands of tackle manufacturers and consumers worldwide. The painting process that takes less than 20 minutes from start to finish and you’ve got an unbeatable product. Use CS Coatings Powder Paint on both new and also on those old battered jigs to improve appearance and increase performance.

CS COATINGS POWDER PAINT (Two Versions – STANDARD & SUPER GLOW)

Watch a video on How-to Apply Powder Paint

PRO-TEC “STANDARD” GLOW CLEAR OVERCOAT POWDER PAINT (STANDARD #17)

To make your coating even better, remember that a coat of Pro-Tec Glow Overcoat #17 will increase glow properties of CS Coatings Pro-Tec Standard and Glow powders. “Glow” Overcoat is a highly charged semi-clear powder that can be applied over any of the standard or fluorescent powder paint colors while the lure is still hot. The jig will appear as the base color in the light, but the overcoat will “glow” a greenish white in darkness.

FEATURES:

• Super high gloss
• One-coat coverage with no white primer needed
• No drying time
• Non-flammable and environmentally safe
• Will not dry out
• No mixing or settling
• No odor
• Easy cleanup
• 2oz jar

PRO-TEC “SUPER GLOW” POWDER PAINT

A glow that puts on a show, attracting fish that put up a fight! That’s what you can expect from one of the most popular lure finishes to emerge in recent years. The Pro-Tec Super Glow Series is unlike any other powder paint. It’s extra durable and extra bright. In fact, it glows its true color up to five times brighter and twice as long as standard glow paints. Lures finished with Pro-Tec Super Glow attract fish even in dark fishing conditions. And more light intensity means less recharging.

FEATURES:

• Same features as Pro-Tec Powder Paint above plus more
• Glows its true color up to five times brighter and twice as long as standard glow paints.
• Lures finished with Pro-Tec Super Glow attract fish even in dark fishing conditions.
• More light intensity means less recharging.
• 2oz jar

COLOR CODES FOR PRO-TEC POWDER PAINTS

Code – Color
01 – Standard White
02 – Standard Yellow Chartreuse
03 – Standard Green Chartreuse
05 – Standard Black
06 – Standard Hot Pink
07 – Standard Flame Red
08 – Standard White Pearl
13 – Standard Yellow
14 – Standard Red
17 – Standard Glow “Clear” Overcoat
31 – Standard Glow White
33 – Standard Glow Green Chartreuse
35 – Standard Glow Bright Green
36 – Standard Glow Hot Pink
52 – Super Glow Yellow (Looks like a Dark Green Chartreuse)
56 – Super Glow White

APPLYING POWDER PAINTS

Stir settled powder to make it fluffy and light. Some have found that working out of a small round bowl allows for easier application. To apply PRO-TEC POWDER PAINT to jigs, hold the jig by the hook with your fingers. Preheat jigs by rotating through the flame of a torch or your gas range using a small flame. Hook will stay cool. Rotate jig in the blue part of flame for 2 seconds for 1/16 oz. jigs, 4 seconds for 1/4 oz. jigs, and so on. You may also preheat jigs in a 325 degree F oven for 15 minutes or use a cigarette lighter.

Once hot, quickly swish the jig through light powder with a side to side motion to cover the entire surface. Do not dip or push jigs into power. Remove IMMEDIATELY. The surface will then melt and gloss over. If the jig smokes, reduce the preheat time slightly. If the jig appears powdery and dry, increase the preheat time. Continue to keep the powder loose and fluffy between painting.

Your jigs are now ready for use. However, curing the lure will produce an extremely durable, chip resistant finish. Jigs may be “cured’ by hanging them in an oven at 350 degrees F for 15 minutes. Allow a few minutes for your jigs to get up to temperature. Lures with weed guards should be cured at 250 degrees F for 25 minutes. Always open the eye of the hook with a sharp object before curing.

EYES

Eyes can be painted on jigs using CS Coatings liquid vinyl lure and jig finish. Use non-fluorescent colors such as black, red or yellow. If curing the jigs, eyes must be painted on afterward.

TWO TONE JIGS

Two tone jigs can also be painted by dipping powder painted jigs in liquid vinyl paint for the second color. Since the jig now contains two coats of paint, there may be a tendency to drip if cured.

METAL FLARE GLITTER

Metal flare glitter is specially formulated for our powder paints and can add a new dimension to your lures. Mix approximately 1 part metalflake to every 10 parts of CLEAR GLOSS powder paint (adjust ratio to achieve desired results).

Immediately after applying PRO-TEC color coat, swish the still hot jig back and forth through the clear powder and metalflake mixture. This will melt over the top of the color and produce an extremely deep, high gloss glitter effect.

REMEMBER!

The powder painting technique may take a few tries to attain a desirable finish. But with a little practice, you’ll be saving time and money while creating a product of the highest quality.

• Always keep powder paint loose and fluffy.
• Use a swishing motion to cover lures completely.
• Remove jigs from powder IMMEDIATELY.
• Experiment with preheating time for best results.
• ALWAYS STORE POWDER BELOW 75 degrees F!
