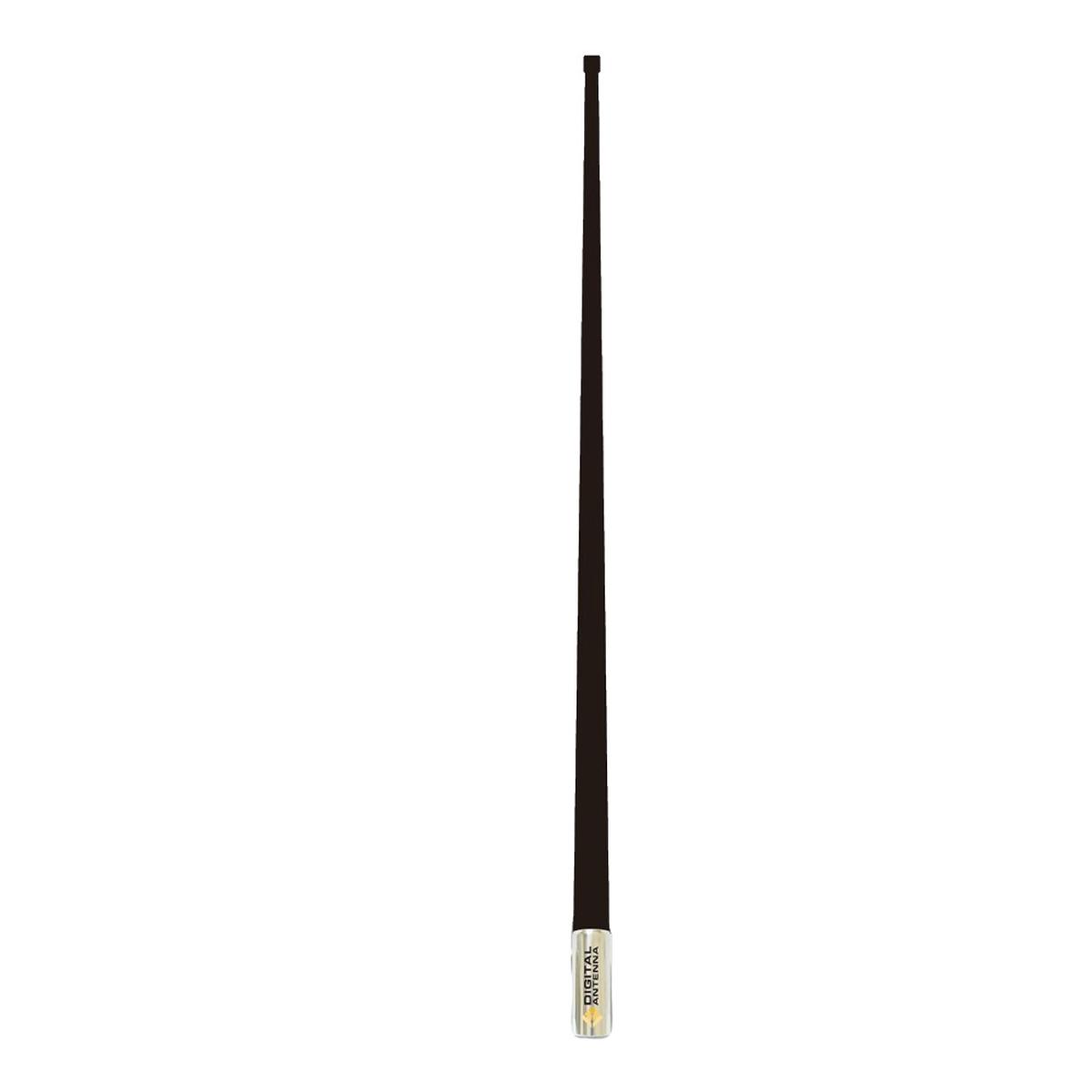

Digital 529-VB-S 8′ Black VHF Antenna

$369.99 $145.00

  • Shipping Icon
    Free
    Shipping
  • Shipping Icon
    Safe
    Payment
  • Shipping Icon
    Best
    Services
SKU:
Categories :
  • Fishing gear
  • Digital Antenna 529-VB-S 8′ VHF Antenna

    Model: 529-VB-S

    Features:

    • Powerful brass radiators
    • Soldered connections
    • Power directing ferrite choke bead
    • High gloss urethane finish
    • 316 stainless steel ferrule
    • 6dB gain

    Digital Antenna’s ultimate, award-winning 8′ VHF antennas combine 6 dB gain, ruggedness and a pristine finish to give you the most superior antenna available. Even in the harshest conditions, these antennas will maintain their beautiful glossy finish for years. Built to withstand high speeds, these antennas are ideal for radar arches and T-tops on speedboats, yachts and commercial vessels.

    Customers and installers love the 500 GOLD Series easy installation connector system. The gold factory-attached mini-UHF female connector with PL-259 (UHF) adapter makes connecting to the radio easy, eliminating the need to solder connectors.

    All of our antennas are made in the USA, assembled, tested and tuned by hand for maximum performance, quality and durability.

    Specifications

    Length 94.75″
    Mount Standard 1″14 threaded base
    Connector Gold factory-attached mini-UHF female with mini-UHF male to UHF male (PL259) adapter
    Cable Includes 20′ of our low-loss, tinned braid, foil shielded, UV stable RG-8X marine cable
    Gain 6dBi
    VSWR <2.0:1 = 152.8-160.8 MHz (8 MHz)
    Impedance 50 ohms
    Maximum input power 100 watts
    Exterior finish White, UV stable poly-urethane coating
    Ferrule 316 Stainless Steel
    Wind Rating 105 mph
    RF Connector Mini-UHF female (factory attached) and PL-259 adapter

    What’s in the Box:

    • Antenna – Black with 20′ cable
    • PL-259 Adapter
