The Jabsco Par-Max 1 series pumps are available as automatic and manual demand pumps. They will automatically turn on when a fixture is opened and turn off when all fixtures are closed. The pump is a manual demand pump for use with an electric faucet.

When starting up an automatic demand pump with a completely dry system, allow time for the demand pump to fill the system. Open a faucet, allow air to vent and close faucet when water flow is steady. Faucet strainers and aerators should be cleaned regularly.

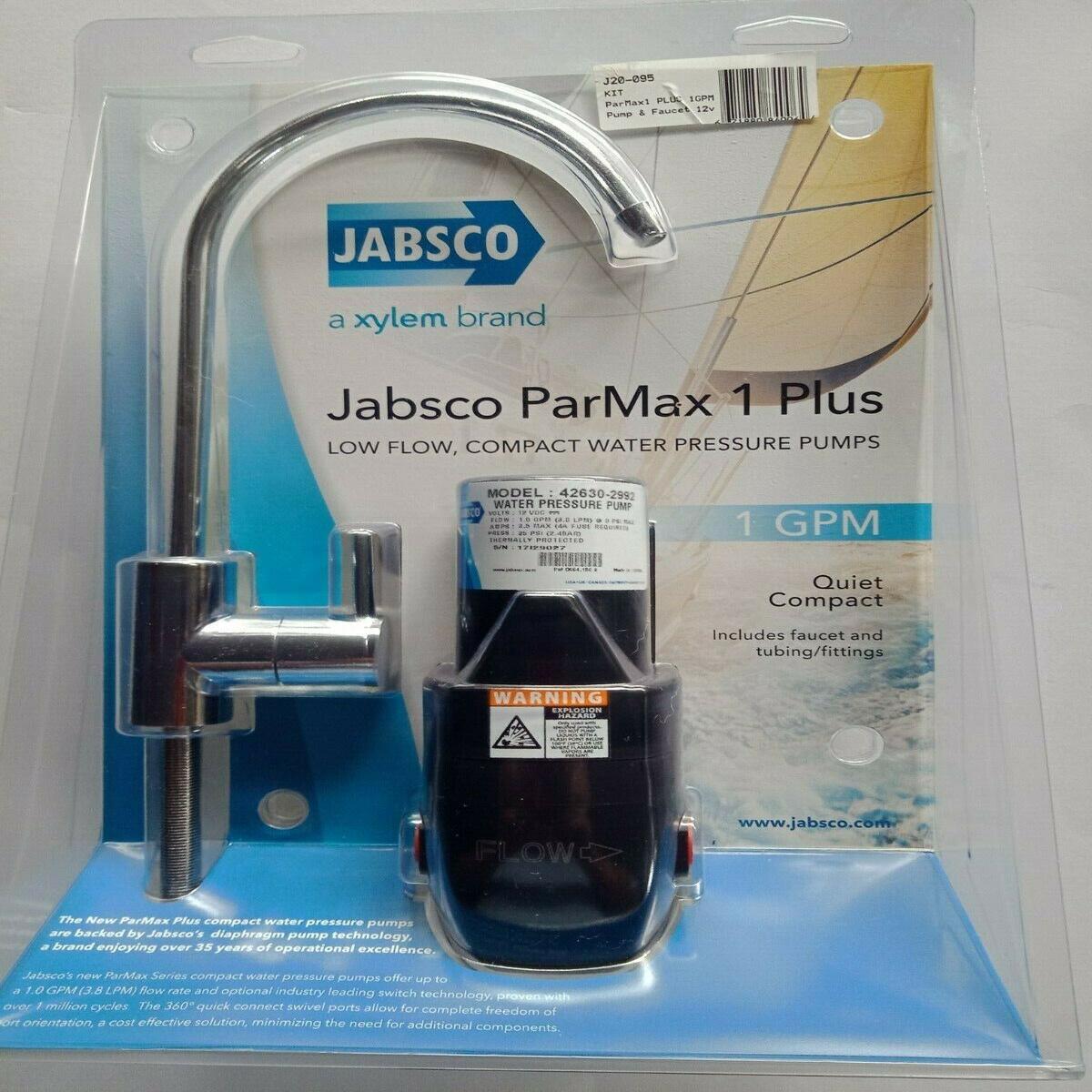

Jabsco ParMax 1 Plus Low Flow, Compact Pressure Pump is small, versatile and very quiet. Perfect For camper trailers & 4WD’s, as well as boats caravans & RV’S.

Features

– Sealed Motor & Pressure Switch, Providing Years Of Dependable Reliability
– Jabsco Diaphragm Pumps Provide Dependable Run Dry Capabilities
– Built In Thermal Protector Prevents Overheating
– Low Amp Draw
– Self Priming – Up To 6ft (1.8 Metres)

Specifications

– Pump Weight 630 Grams
– Pump Length 165 mm
– Pump Width 103mm
– Pump Height 70mm
– Easy To Install.
– 12 Volt
– Flow 1.0 GPM (3.8Lpm)
– Amps 3.5 Max (4A Fuse Required, Not Supplied)
– Pressure 35 PSI (2.4 BAR)
– Duty Cycle- Intermittent.
– Housing Material- Polypropylene
– Faucet Height Above Sink 240mm, Threaded Tail 80mm
– Port Type- Quick Disconnect 3/8 HB Straight Poly- (Fittings To Fit Pump & Faucet Included).
