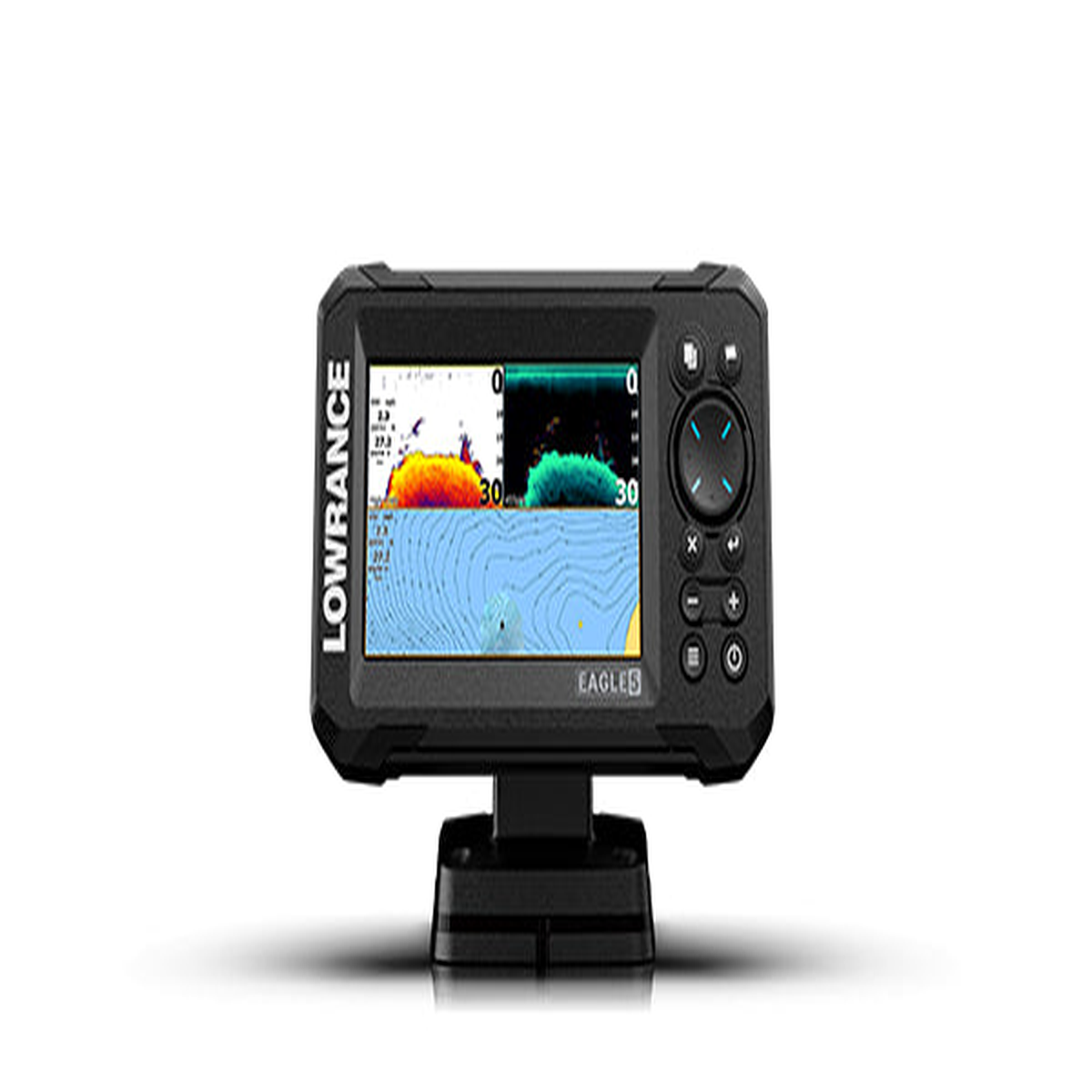

LOWRANCE EAGLE-5 SPLITSHOT HD ROW

$484.00 $145.20

  • Shipping Icon
    Free
    Shipping
  • Shipping Icon
    Safe
    Payment
  • Shipping Icon
    Best
    Services
Categories :
  • Fishing gear
  • The innovative Lowrance Eagle HD Row is specifically designed for expert anglers seeking an unparalleled fishing experience. Its advanced features such as autotuning sonar, detailed C-MAP charts, and always-visible IPS screen ensure maximum performance and minimal distractions. The newly designed TripleShot HD and SplitShot HD provide superior clarity, depth and sensitivity, delivering exceptional results beneath the surface. Boasting a rugged and modern design, Eagle’s new IPS screens offer improved resolution, clarity and visibility even in direct sunlight with polarized sunglasses. With preset optimal settings, Eagle eliminates the need for manual adjustments and the improved twist-locking connector allows for effortless installation and removal, making it an ideal portable solution for all types of fishing. Loaded with a worldwide base map chart and the option to upgrade to C-MAP DISCOVER, Eagle also offers the remarkable ability to create custom -foot contour maps in real time with Genesis Live. Experience unparalleled fishing with Eagle.

    DISPLAY

    Screen size

    5″ IPS

    Resolution

    800 x 480

    Keypad

    9-way directional keypad, pages, waypoint, exit, enter, zoom, menu, power

    Viewing angles in degrees

    85 top/bottom, 85 left/right

    SONAR

    Sonar compatibility

    Integrated:
    CHIRP, Broadband, DownScan

    Max depth

    200 kHz: 152m (500ft)
    DownScan: 91m (300ft)

    Sonar frequencies

    CHIRP*
    200kHz (High)
    83kHz (Medium)
    50 kHz (Low)
    *depending on transducer

    DownScan
    455 kHz (Low)
    800 kHz (High)

    MULTIFUNCTION SUPPORT

    Cartography included

    World basemap

    Cartography supported

    C-MAPDISCOVER
    C-MAPGenesis Live

    Waypoints, routes, tracks

    3000 waypoints
    100 routes
    100 trails

    GPS

    Correction:
    SBAS

    Time to first fix:
    45s

    INTERFACE AND CONNECTIVITY

    Sonar

    1 port

    Card reader

    1 slot (microSD) up to 32GB

    ELECTRICAL

    Supply voltage

    12 VDC

    Power consumption

    280mA, 190mA at 12VDC (backlight full/off)

    Recommended fuse rating

    5A

    PHYSICAL

    Weight

    0.45 kg (0.99 lbs)

    Mounting type

    Panel mount or bracket mount

    Dimensions

    ENVIRONMENTAL

    Operating temperature range

    -15C to +55C (5 F to 131 F)

    Storage temperature

    -20C to +60C (4F to 140F)

    Humidity

    Damp heat 66C (150F) at 95% relative (48 hr)

    Waterproof rating

    IPX7 with card door closed

    WARRANTY

    Warranty period

    1 year
