Discover unbelievable scanning capabilities with Lowrance’s HDS PRO series. This series of products equips you with the most advanced sonar technologies, enabling you to view bottom contours with unprecedented clarity and detail.!

Lowrance HDS PRO builds on its successful predecessor with a range of enhanced and innovative features. Users can take advantage of the ActiveTarget2 Live, newly designed Active Imaging HD, Active Imaging HD FishReveal* sonar capabilities, and powerful dual-channel 1 kW CHIRP sonar.

Lowrance HDS PRO is compatible with ActiveTarget2 Live, the pinnacle of live sonar technology. Its range and clarity is superior to the previous iteration, making fishing more effective and efficient. HDS PRO supports dual ActiveTarget2 sonars, allowing anglers to view a 270 Scout Wide view around the boat, a 180 view forward and back, or simultaneously monitor forward and Scout views on one screen.n.

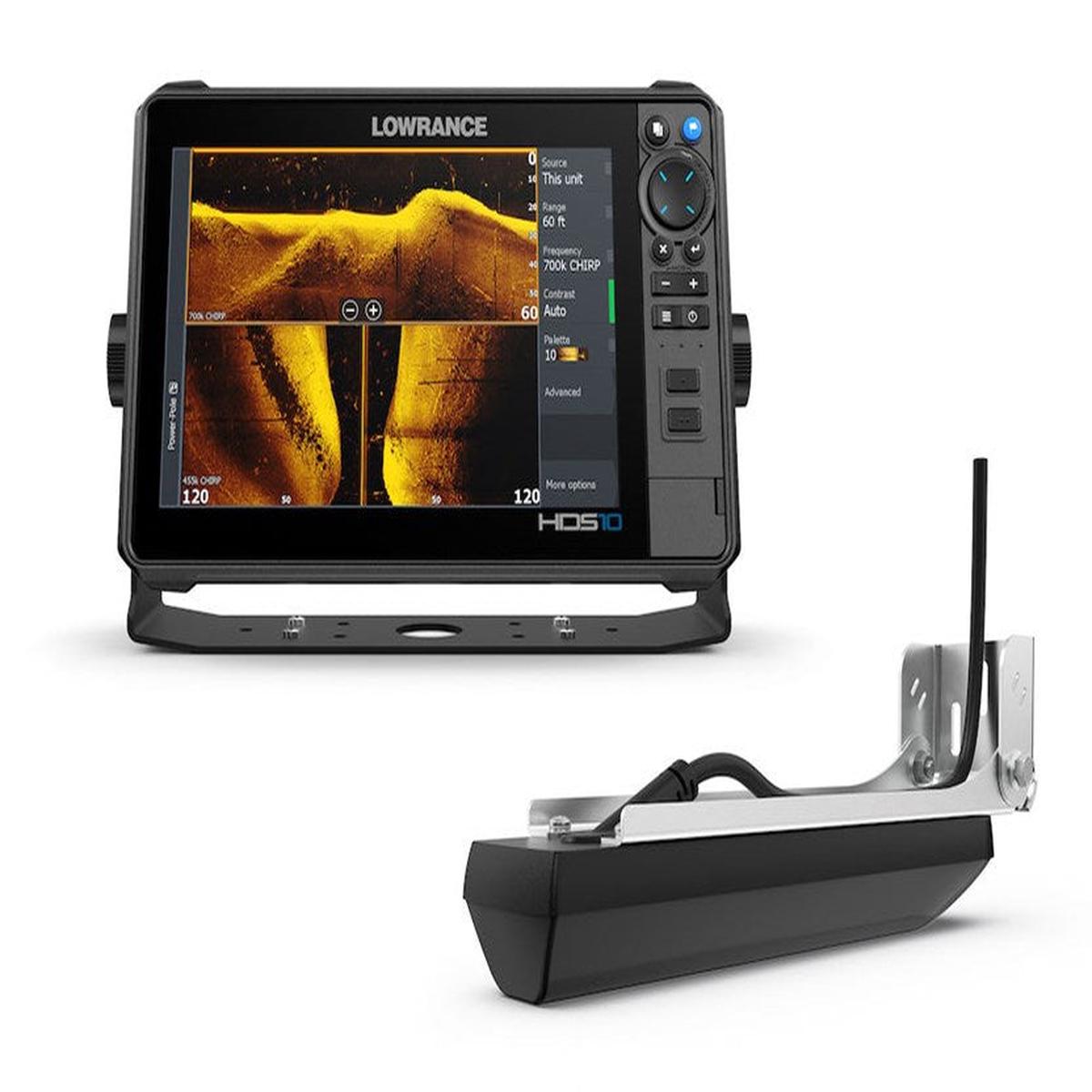

The Lowrance HDS Pro 10 Combo Device boasts a powerful high-resolution Active Imaging HD transducer, enabling you to detect fish with exceptional precision. This advanced sonar transducer utilizes 1075kHz SideScan (powered by mega CHIRP frequency), 1225kHz DownScan (powered by mega CHIRP), and 2D CHIRP sonar for efficient performance. Plus, Lowrance’s FishReveal SideScan (using an S3100 sonar module and a compatible Active Imaging HD transducer) guarantees effortless fish discovery.

The Lowrance HDS PRO offers increased power and performance. The Lowrance fishing system is more comprehensive than ever before. HDS PRO is speedy and efficient, even when running multiple navigational applications and sonar visuals simultaneously. On top of the range of sonar options, you can set up your HDS PRO with lots of other features such as autopilots, Lowrance or Motorguide trolling motors, VHF radios, radars, audio systems and Power Pole anchors.

The HDS PRO 10 Combo Device features the latest navigation technology from Lowrance, including C-MAP Easy Routing, Navionics Autorouting and real-time C-MAP Genesis Live charts. With the real-time Genesis Live mapping, users are able to record new maps of their favorite fishing spots or other bodies of water to a precision of up to 15 cm in real time. To do this, map data can either be recorded onto existing C-MAP map data or onto an empty memory card.

The SolarMAX HD display offers superb image quality and excellent visibility of fish and underwater terrain, even when viewed from different angles in direct sunlight or with polarized sunglasses. Chart data and sonar info can also be seen without difficulty.

The Lowrance HDS PRO 10 Combo Device with Active Imaging HD 3-in-1 Transducer boasts an intuitive multi-touch screen, making it both a versatile and user-friendly device. Its array of data gives sailors and anglers the information needed to safely navigate the water and ensure maximum enjoyment. Keep an eye on all pertinent data–maps, depth, location, battery charge, radar info, and more–with just a simple glance.

Key features:
10 high-resolution SolarMAX HD multi-touch screen, with the widest possible viewing angle the screen can also be viewed in direct sunlight or through polarized sunglasses
Active Imaging HD 3-in-1 & 2-in-1 (CHIRP/SideScan/DownScan Imaging) compatible
Active Imaging FishReveal HD 3-in-1 compatible (FishReveal SideScan requires an S3100 sonar module sold separately)
ActiveTarget2 compatible (also supports the previous generation of ActiveTarget sonars)
Supports the use of two ActiveTarget2 live sonars on one screen
Scout, Ghost 360, and SideScan overlays on top of the chart view
Smart FishReveal function in the DownScan and SideScan* views (*FishReveal SideScan requires an S3100 sonar module sold separately and an Active Imaging FishReveal HD transducer)
True dual-channel CHIRP
Built-in CHIRP and Broadband Sounder
Improved surface noise reduction allows you to see more fish near the surface
Expanded map and sonar views
Real-time C-MAP Genesis Live depth mapping
C-MAP Easy Routing and Navionics Autorouting compatible
Chart options include C-MAP DISCOVER, C-MAP REVEAL, and Navionics charts, for example
The system can be controlled using the multi-touch screen or quick-access keyboard
User-programmable hotkeys (in the 10, 12, and 16 models)
Lowrance Outboard Pilot autopilot control and management from the touchscreen
Lowrance Ghost electric trolling motor control and management from the touchscreen
MotorGuide Xi3 and Xi5 electric trolling motor control and management from the touchscreen
Power-Pole anchor control and management from the touchscreen
Lowrance HALO radar support
Lowrance LINK VHF radio support
NMEA 2000 outboard motor support
Wireless Wi-Fi and Bluetooth connections
Smartphone notifications
GPS: 10 Hz GPS/GLONASS WAAS/EGNOS/MSAS
Easy flush-mount or stand
NMEA 2000 Micro-C port
2 x 9-pin sonar port
2 x Ethernet data transfer port
2 x micro SD card slot (max. 32 GB)
Internal memory 8 GB
Storage space: 3 000 waypoints, 100 routes, and 100 tracks
Waterproofing class IPX7
Screen resolution 1 280 x 720
Screen brightness > 1 200 Nits
Operating temperature range -15…+55 C
Operating voltage 12V DC (10.817 VDC)
Typical consumption 2.0 A @ 13 VDC
Max. consumption 2.9 A @ 13 VDC

Included in the package:
10 HDS PRO combination device
HD 3-in-1 transducer
Screen protector
Mounting stand
Power cable and fuse
