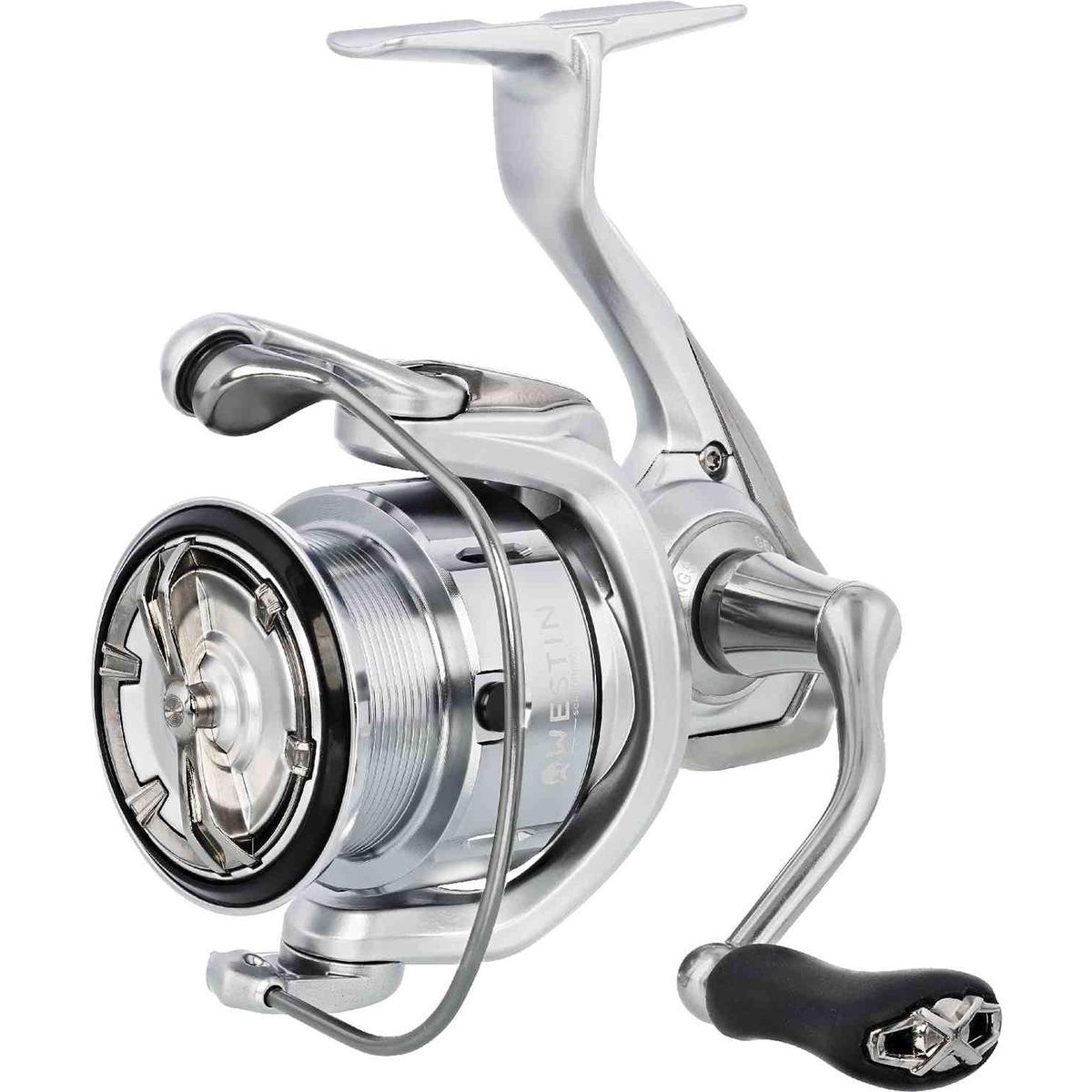

Westin W3 Spinning Reel 5000 FD: Technical Deep Dive

Introducing the Westin W3 Spinning Reel in the 5000 FD (Front Drag) size: Engineered for anglers who demand rock-solid performance with unbeatable toughness. Built around a robust aluminium body and cover, the W3 5000 is designed to withstand tough conditions and tackle the most powerful fish with unwavering confidence.

This large-capacity 5000 size is perfectly suited for heavier fishing scenarios, such as casting large lures for pike and zander, or fishing heavy current and deep water, where its rigid construction and powerful drag system truly shine.

Features & Angler Benefits

Rock-Solid Construction: Constructed around a robust aluminium body and cover, this rigid foundation ensures perfect gear alignment, even under heavy loads, translating directly into more cranking power and long-lasting durability.
Powerful Carbon Drag: When a big fish strikes, rely on the powerful and consistently smooth carbon drag system to apply a maximum of 8 kg (17.6 lbs) of controlled pressure, perfect for taming aggressive runs with confidence.
Braid Ready Spool: The large capacity spool is double-anodized and optimized for casting. The smooth ceramic line roller minimizes friction and twist, a crucial advantage, especially when using modern braided lines.
Smooth High-Performance: Equipped with a 5+1 Stainless steel ball bearing system (often marketed as 7+1 BB in some regions, including the anti-reverse), it delivers exceptionally smooth retrieves and effortless casting.
Durability & Reliability: Key internal components, including the stainless steel main shaft and CNC brass gear, add a layer of resilience against the elements and hard-fighting fish. The IPX5 rating confirms its robust resistance to water and spray.
Instant Hooksets: The instant anti-reverse one-way clutch provides immediate, rock-solid hooksets with zero back-play.

Technical Performance Highlights

Specification	Value	Benefit
Gear Ratio	5.2:1	A powerful retrieve that offers high torque for battling large fish and working high-resistance lures.
Line Capacity	0.285 mm / 200 m	Excellent capacity for thicker braided lines needed for pike, sea fishing, or dealing with abrasive conditions.
Max Drag	8 kg (approx. 17.6 lbs)	Heavy-duty stopping power to control large, powerful predators.
Line Retrieve	85 cm per turn	Good line pick-up rate for covering water quickly and reducing slack.
Weight	315 g	Relatively light for a 5000-sized reel with an aluminium body, reducing casting fatigue.

Product Specifications

Feature	Detail / Specification
Model Size	5000 FD (Front Drag)
Weight	315 g
Bearings	5+1 Stainless steel ball bearings
Gear Ratio	5.2:1
Line Retrieve	85 cm
Max Drag	8 kg
Line Capacity (Mono/Braid)	0.285 mm / 200 m
Frame Material	Aluminium body and body cover
Rotor Material	Carbon fiber rotor
Gear Material	CNC brass gear
Drag System	Carbon dragwashers
Water Resistance	IPX5 rating (All water use)
Main Shaft	Stainless steel mainshaft
