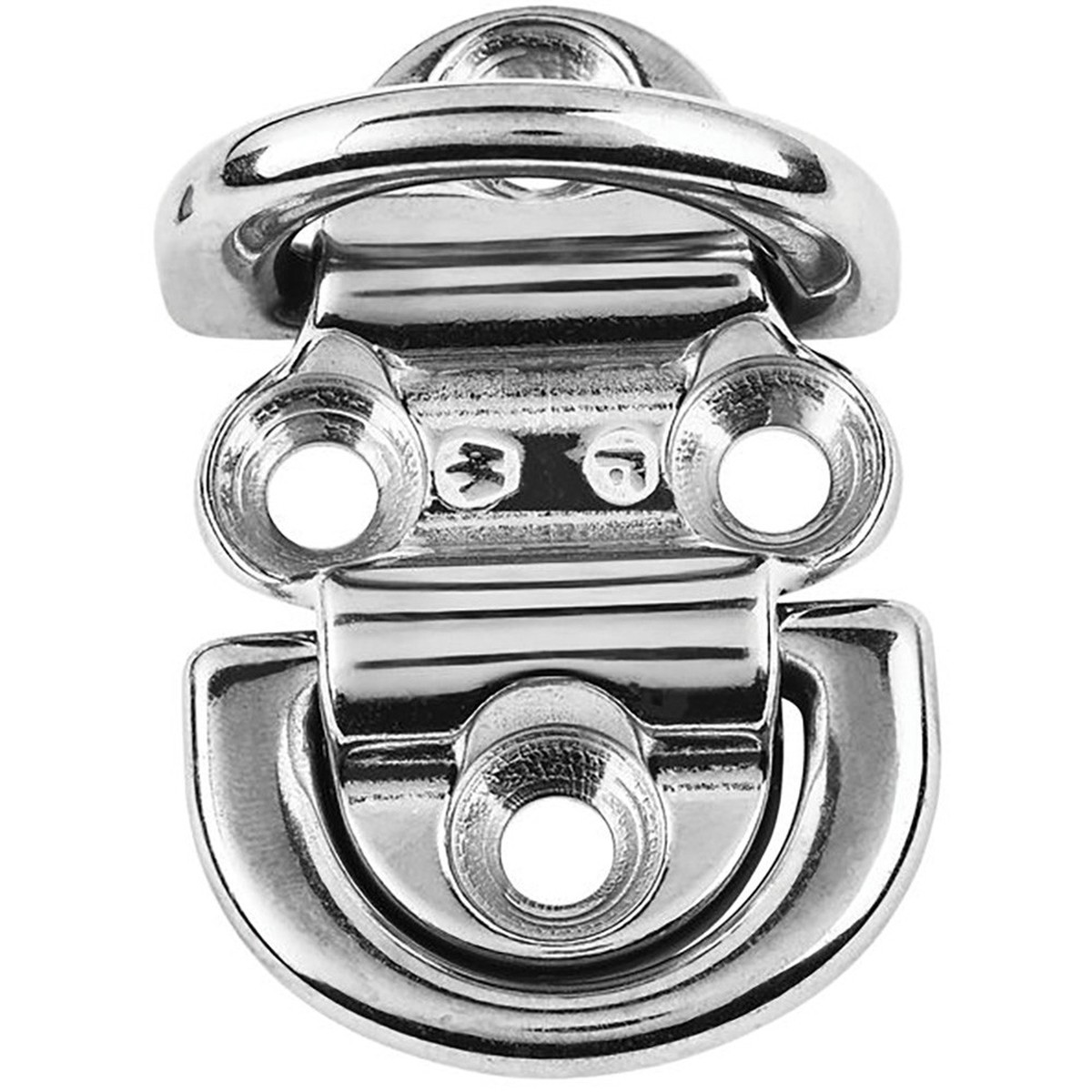

Double Folding Pad Eye – 10mm Diameter – 25/64″Features:Fully drop forged product with outstanding working and breaking loads regardless of the angle of the loadPerfect solution attachment (stay, blocks, jib tack point)Possibility to attach several staysModern and optimized design to suit the aesthetics of modern boatsThey can be folded down to minimize the risk of injuriesThe silicon pad eliminates noise and unpleasant vibrationsApplications:For any fastening/attachment applicationAllows to attach several shroudsSpecifications:Materials: 316L stainless steel gradeWorking load: (lb) 10050 / (kg) 4560Breaking load: (lb) 19840 / (kg) 9000Weight: (lb) 1.089 / (g) 494Dimensions:A: (inch) 2 61/64″ / (mm) 75B: (inch) 1 49/64″ / (mm) 45C: (inch) 29/32″ / (mm) 23d diameter: (inch) 13/32″ / (mm) 10.5D diameter: (inch) 25/64″ / (mm) 10E: (inch) 4 3/32″ / (mm) 104F: (inch) 3 5/64″ / (mm) 78Caption:Working Load (WL): For nautical applicationsWorking Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5*Sold as an Individual Quick Guide (pdf)
